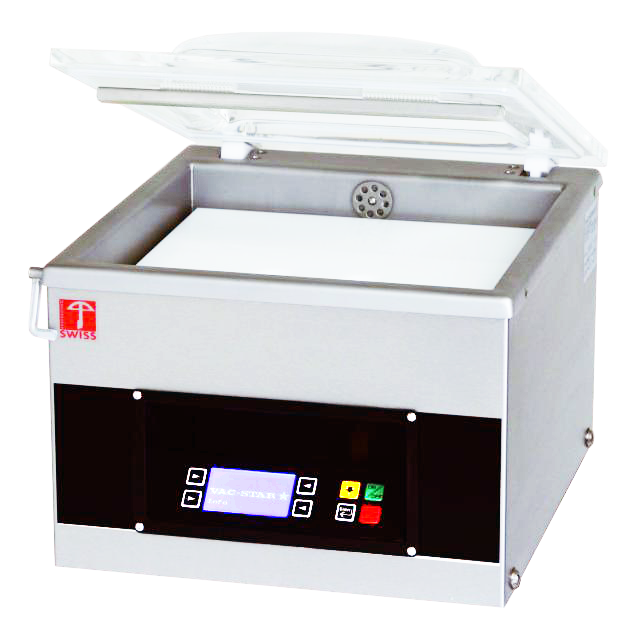

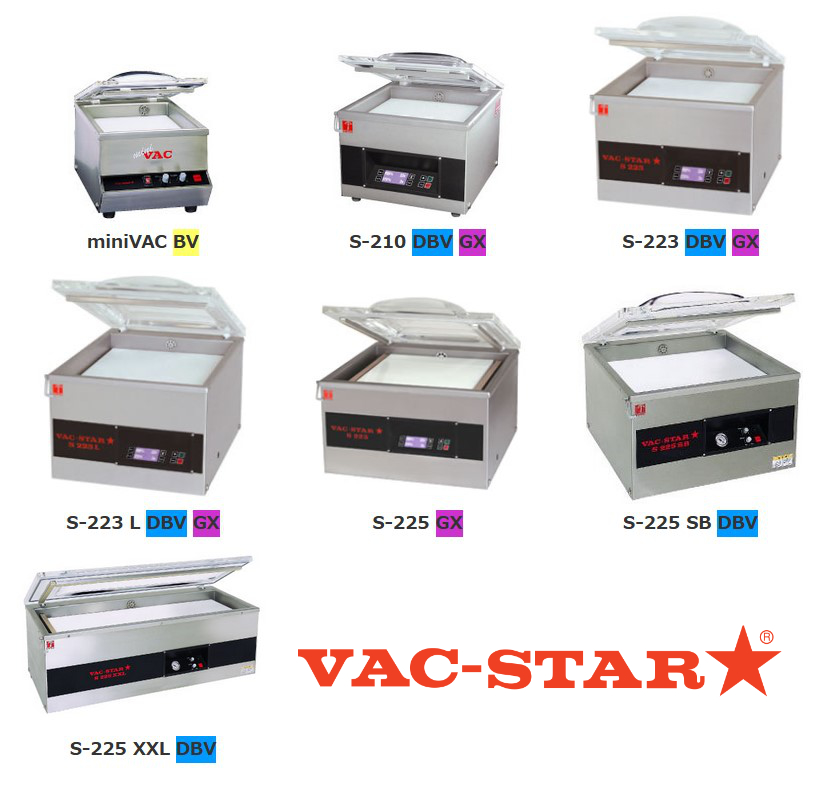

VAC-STAR★ miniVAC /
S-210 / S-223 /
S-223 L / S-225 /
S-225 SB / S-225 XXL

商品カテゴリー

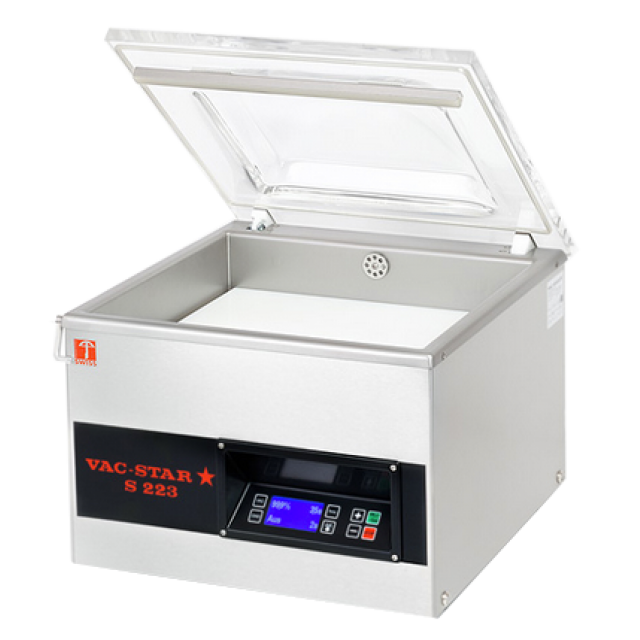

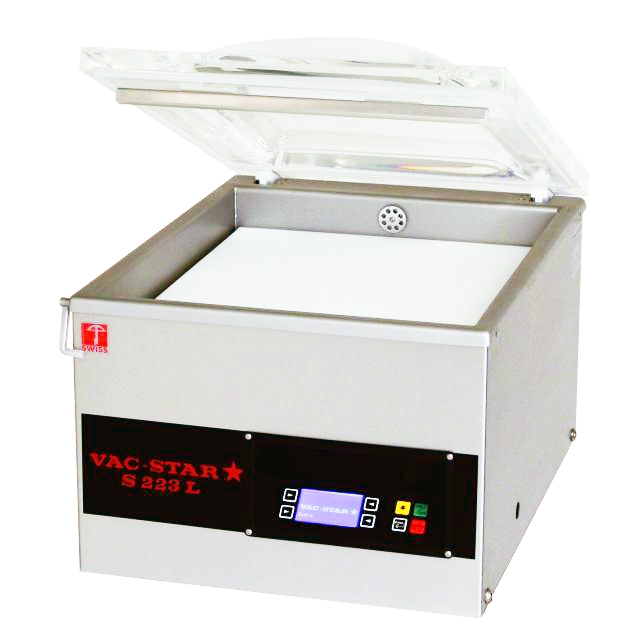

Machine Dimensions	miniVAC: Width 260 × Depth 400 × Height 250mm S-210: Width 380 × Depth 430 × Height 350mm S-223: Width 490 × Depth 520 × Height 450mm S-223 L: Width 490 × Depth 620 × Height 450mm
Machine Weight	miniVAC: 20kg S-210: 45kg S-223: 70kg S-223 L: 76kg
Power Supply	miniVAC: Single-phase 100V 0.2kW S-210: Single-phase 100V 0.8kW S-223: 3-phase 200V 1.0kW S-223 L: 3-phase 100V 1.0kW
Chamber Internal Dimensions	miniVAC: Width 220 × Depth 280 × Height 55mm S-210: Width 335 × Depth 320 × Height 60mm S-223: Width 445 × Depth 410 × Height 120mm S-223 L: Width 445 × Depth 510 × Height 120mm
Maximum Sealing Width	miniVAC: 205mm S-210: 320mm S-223: 425mm S-223 L: 425mm
Vacuum Pump	miniVAC: 4m³/h S-210: 10m³/h S-223: 21m³/h S-223 L: 21m³/h
Control Panel Type	miniVAC: BV S-210: DBV / GX Type S-223: DBV / GX Type S-223 L: DBV / GX Type

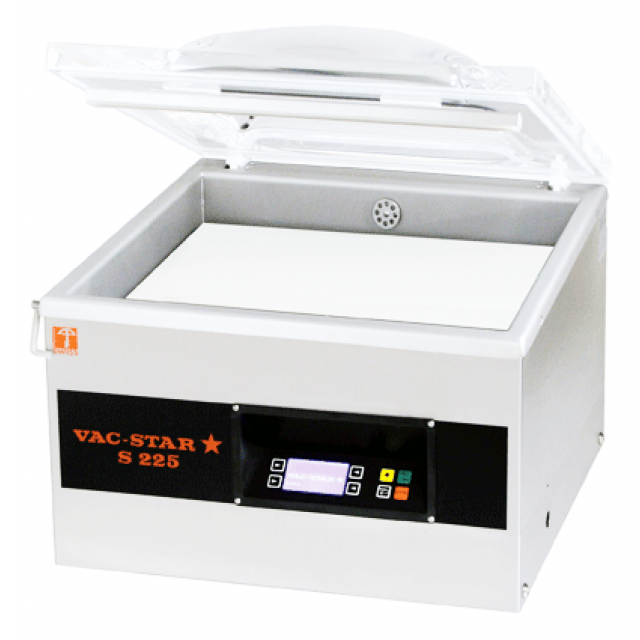

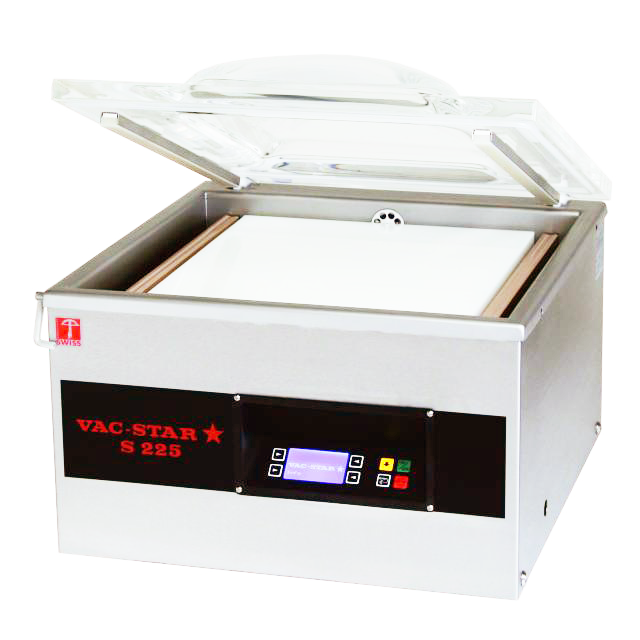

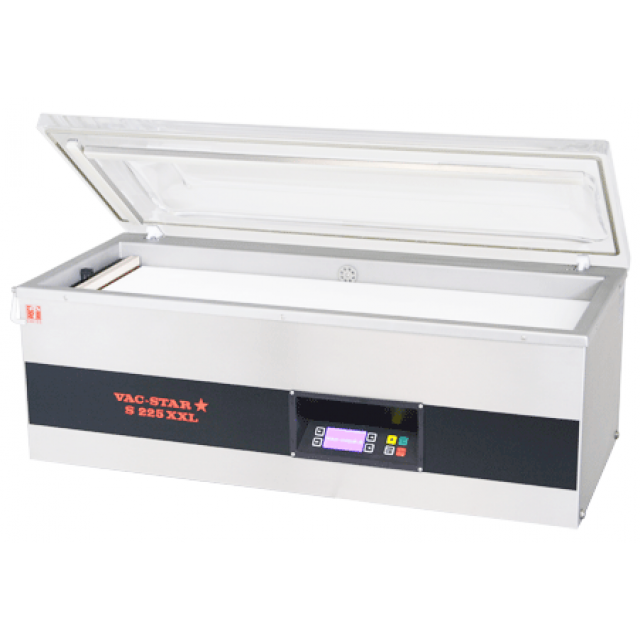

Machine Dimensions	S-225: Width 560 × Depth 595 × Height 460mm S-225 SB: Width 560 × Depth 595 × Height 455mm S-225 XXL: Width 1,010 × Depth 455 × Height 420mm
Machine Weight	S-225: 82kg S-225 SB: 84.5kg S-225 XXL: 103kg
Power Supply	S-225: 3-phase 200V 1.6kW S-225 SB: 3-phase 200V 1.6kW S-225 XXL: 3-phase 200V 2.0kW
Chamber Internal Dimensions	S-225: Width 510 × Depth 480 × Height 125mm S-225 SB: Width 510 × Depth 480 × Height 125mm S-225 XXL: Width 950 × Depth 330 × Height 120mm
Maximum Sealing Width	S-225: 460mm × 2 S-225 SB: 490mm S-225 XXL: Long 860mm, Short 270mm
Vacuum Pump	S-225: 21m³/h S-225 SB: 21m³/h S-225 XXL: 21m³/h (23m³/h capacity)
Control Panel Type	S-225: GX Type S-225 SB: DBV Type S-225 XXL: DBV Type

※Specifications may be changed without notice for product improvement.
