写真：TURBOVAC M-40 / M-60 / L-10 / L-40

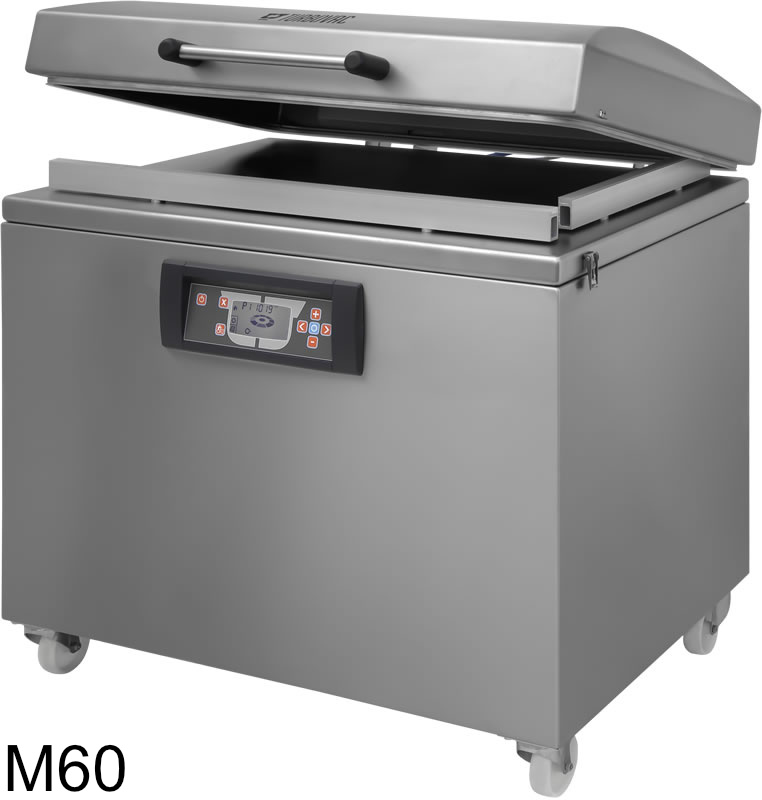

写真：TURBOVAC M-60

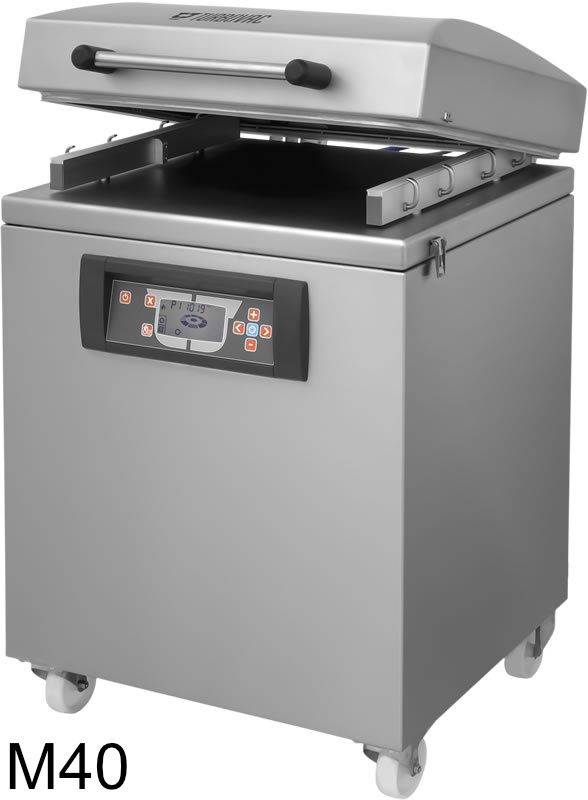

写真：TURBOVAC M-40

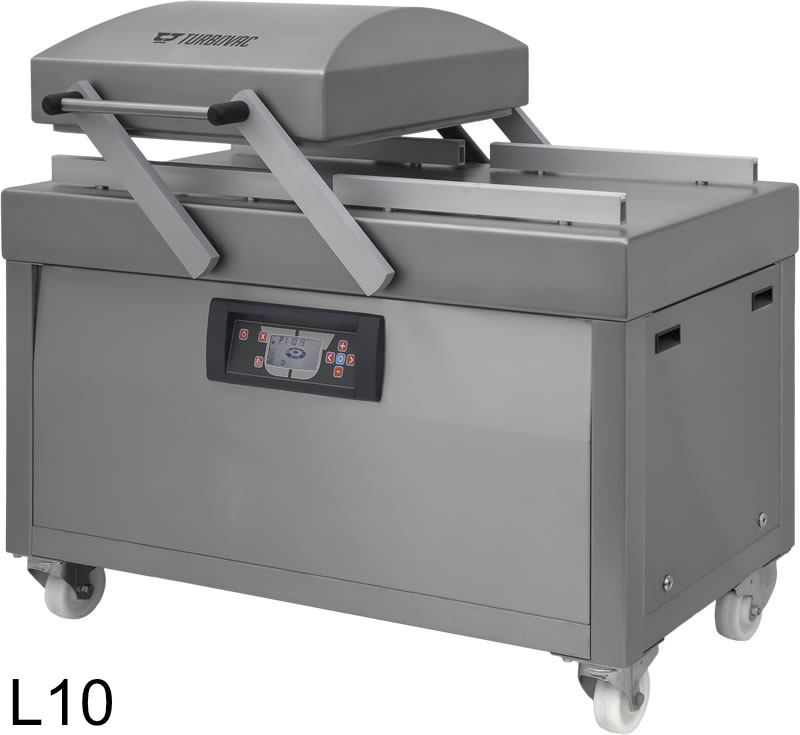

写真：TURBOVAC L-10

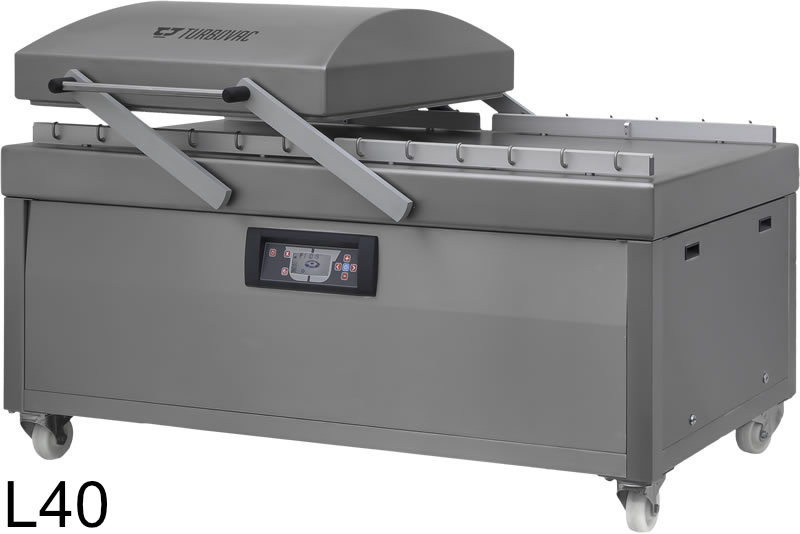

写真：TURBOVAC L-40

TURBOVAC M-40 / M-60 /
L-10 / L-40

商品カテゴリー

関連タグ

製品説明

Turbopack Packaging Machines M-40 / M-60 / L-10 / L-40

M-40 / M-60 Specifications

Machine Dimensions M-40: Width 718 × Depth 757 × Height 1,123mm M-60: Width 1,118 × Depth 855 × Height 1,135mm
Machine Weight M-40: 180kg M-60: 280kg
Power Supply M-40: 3-phase 200V 50/60Hz 3.3kW M-60: 3-phase 200V 50/60Hz 3.5kW
Chamber Internal Dimensions M-40: Width 620 × Depth 505 × Height 200mm M-60: Width 1,005 × Depth 605 × Height 200mm
Maximum Sealing Width M-40: L 620mm / S&S(KK) 520mm×2 M-60: L 1,020mm / S&S(KK) 620mm×2 / L&S(KL) 980mm+520mm
Vacuum Pump M-40: 63m³/h M-60: 100m³/h
Gas Injection Function M-40: Available M-60: Available

L-10 / L-40 Specifications

Machine Dimensions L-10: Width 1,440 × Depth 914 × Height 1,205mm L-40: Width 2,047 × Depth 1,265 × Height 1,185mm
Machine Weight L-10: 350kg L-40: 720kg
Power Supply L-10: 3-phase 200V 50/60Hz 4.4kW L-40: 3-phase 200V 50/60Hz 9.7kW
Chamber Internal Dimensions L-10: Width 620 × Depth 520 × Height 230mm L-40: Width 920 × Depth 870 × Height 270mm
Maximum Sealing Width L-10: L 620mm×4 L-40: L 920mm×4
Vacuum Pump L-10: 100m³/h L-40: 300m³/h
Gas Injection Function L-10: Available L-40: Available

※Specifications may be changed without notice for product improvement.
