ULMA
Tray Sealer
Series
New value obtained through
evolving packaging technology
To a future where you make a difference with your next move!
ULMA Tray Sealer Features
Shelf Life Extension
- MAP packaging can extend shelf life by approximately 1 week, and skin pack packaging can extend it by approximately 10-20 days.
Logistics Cost Reduction
- Improved packaging strength achieves approximately 2x loading efficiency with MAP packaging and approximately 2.6x with skin pack packaging.
- Reduction in delivery frequency also prepares for truck driver shortages.
Planned Production Possible
- Extended shelf life enables planned production!
- It becomes possible to reduce night shift work that leads to increased labor costs due to labor shortages.
Improved Taste
- Long-term storage at home becomes possible without freezing.
- When beef is skin pack packaged, aging progresses during refrigerated storage, improving taste.
Tray Sealer Lineup

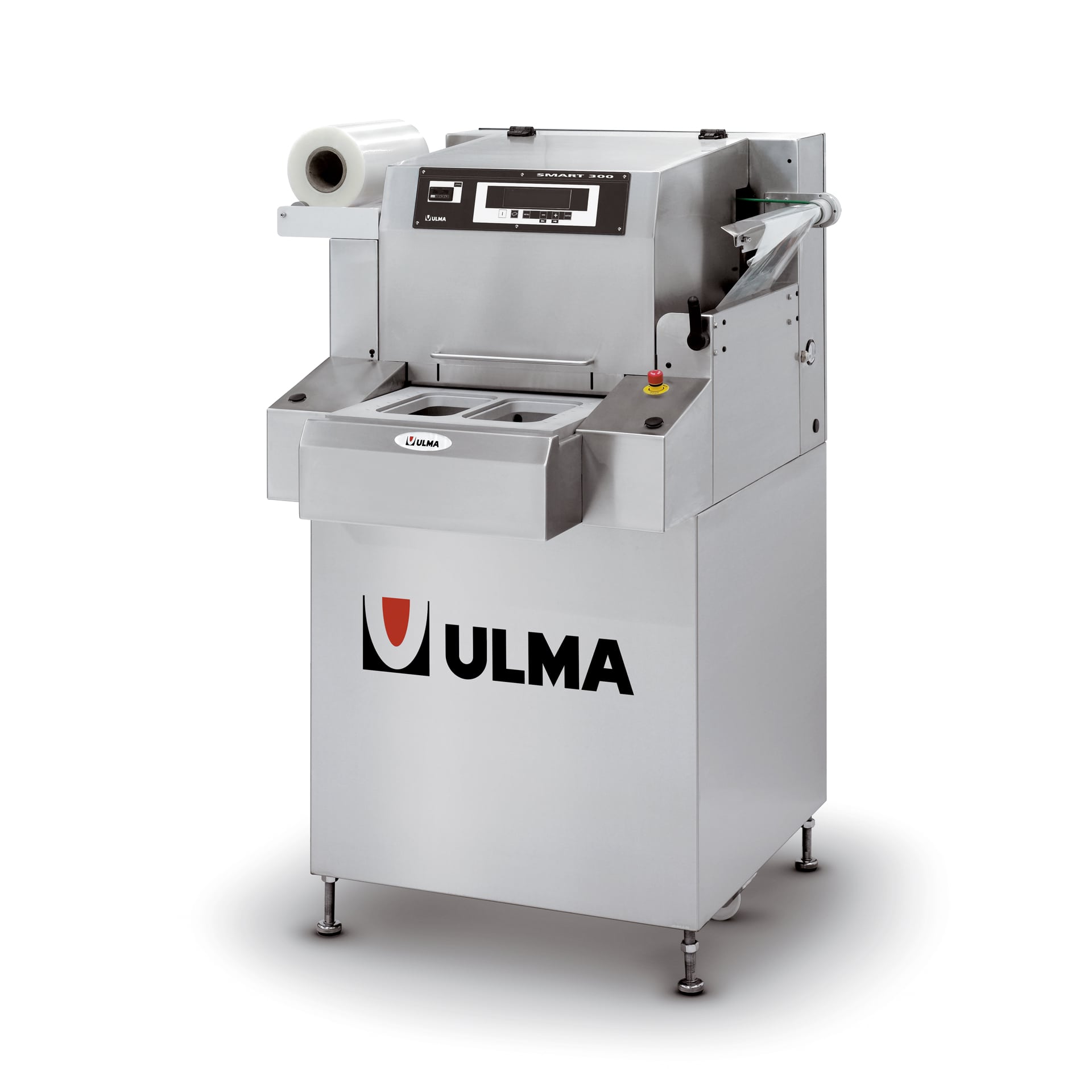

SMART 300
Processing Capacity
- Maximum 8 cycles/min (cut & seal), Maximum 5 cycles/min for MAP
Compatible Packaging
- Vacuum packaging, Modified Atmosphere Packaging (MAP)
Features
- Adopts manual tray transport system and provides basic performance
- Tool-free rapid mold change possible
- Compatible with various tray sizes and heights

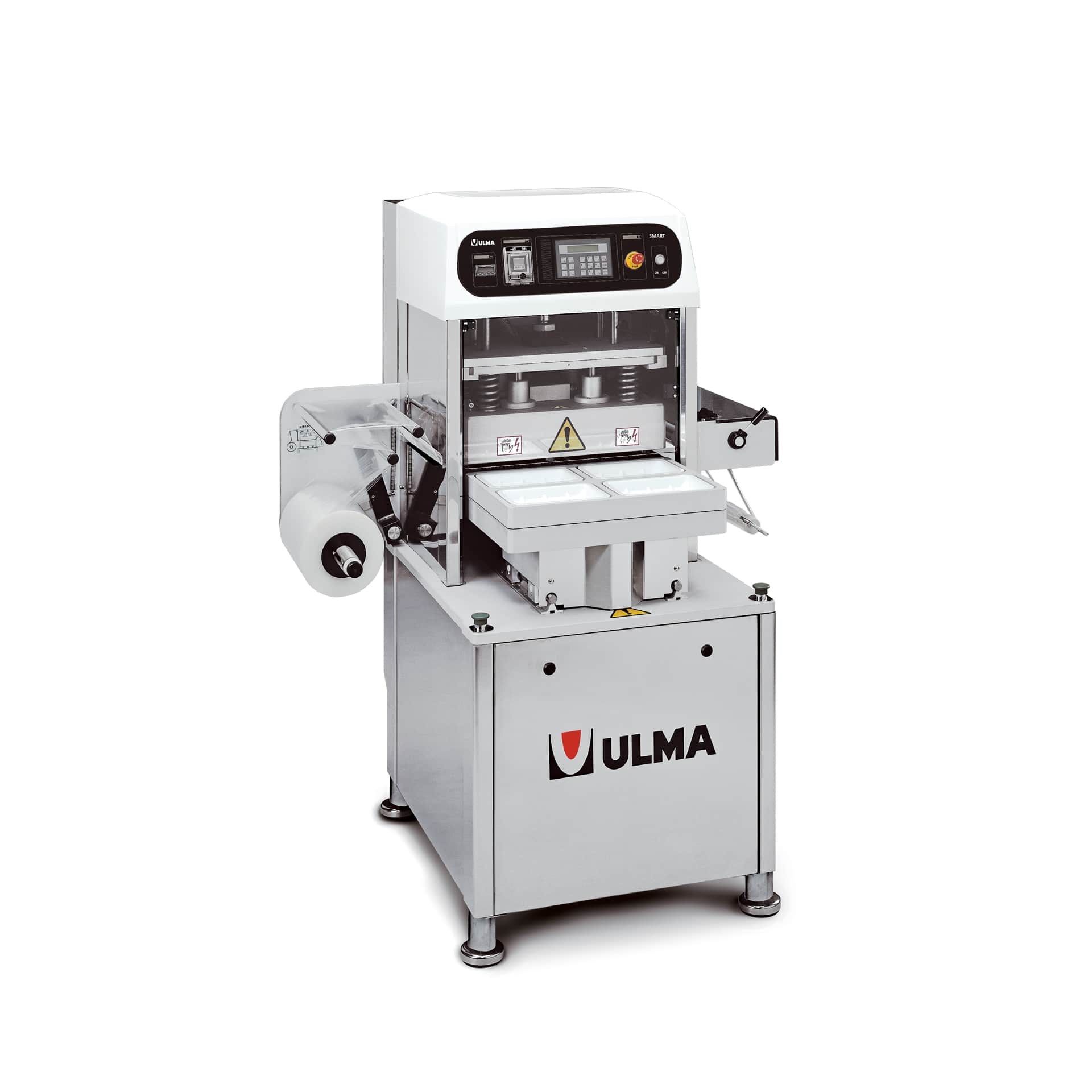

SMART 500
Processing Capacity
- Maximum 8 cycles/min (cut & seal), Maximum 5 cycles/min for MAP
Compatible Packaging
- Vacuum packaging, Modified Atmosphere Packaging (MAP)
Features
- Adopts manual tray transport system and achieves medium to high performance
- Compatible with various tray sizes and heights
- Tool-free rapid mold change possible

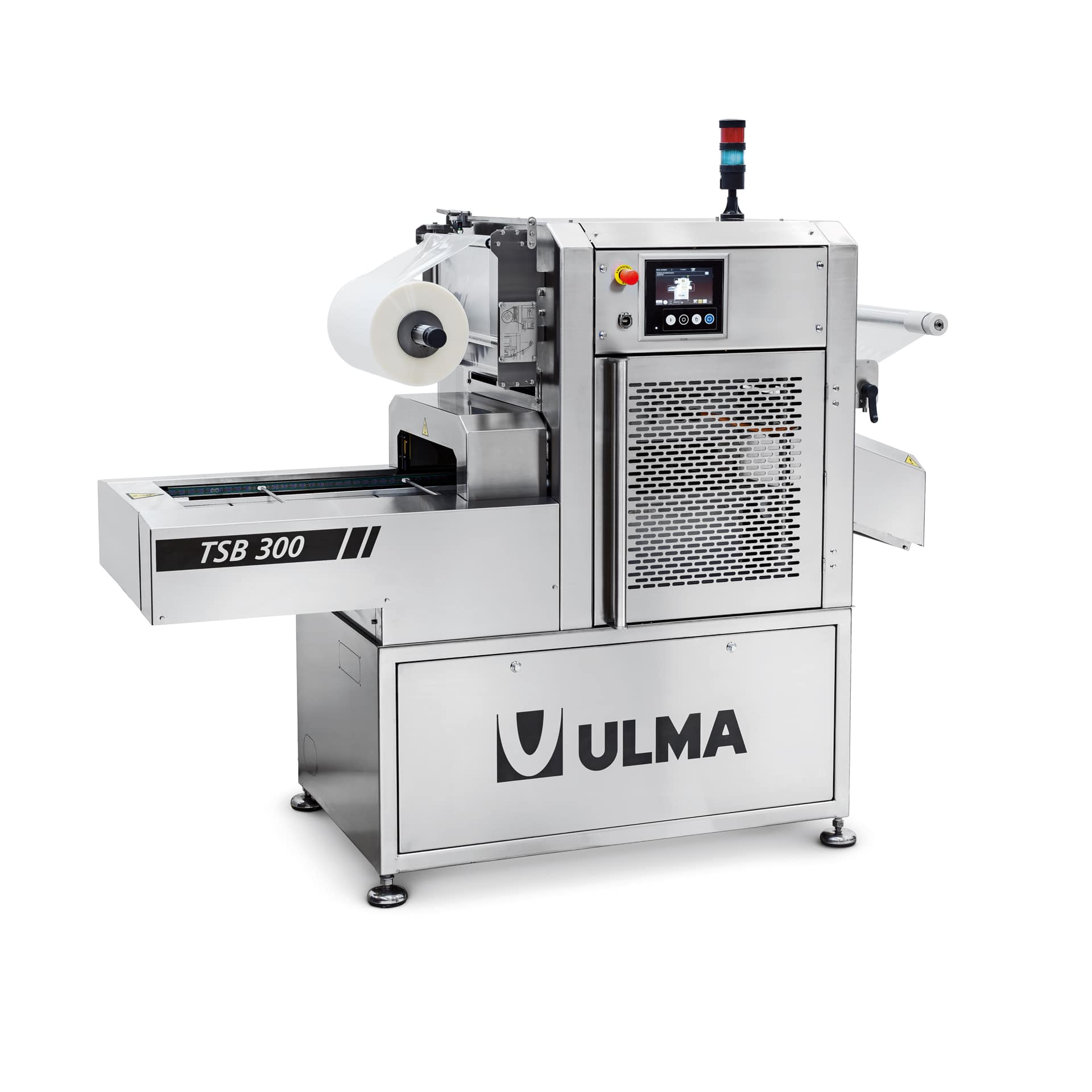

TSB 300
Processing Capacity
- Maximum 12 cycles/min (cut & seal), Maximum 11 cycles/min for MAP
Compatible Packaging
- Vacuum packaging, Modified Atmosphere Packaging (MAP), Skin packaging, Skin protruding packaging
Features
- Compact and hygienic design
- Adopts rod bar tray transport system
- Compatible with various tray shapes and sizes
- Performance suitable for medium-scale production

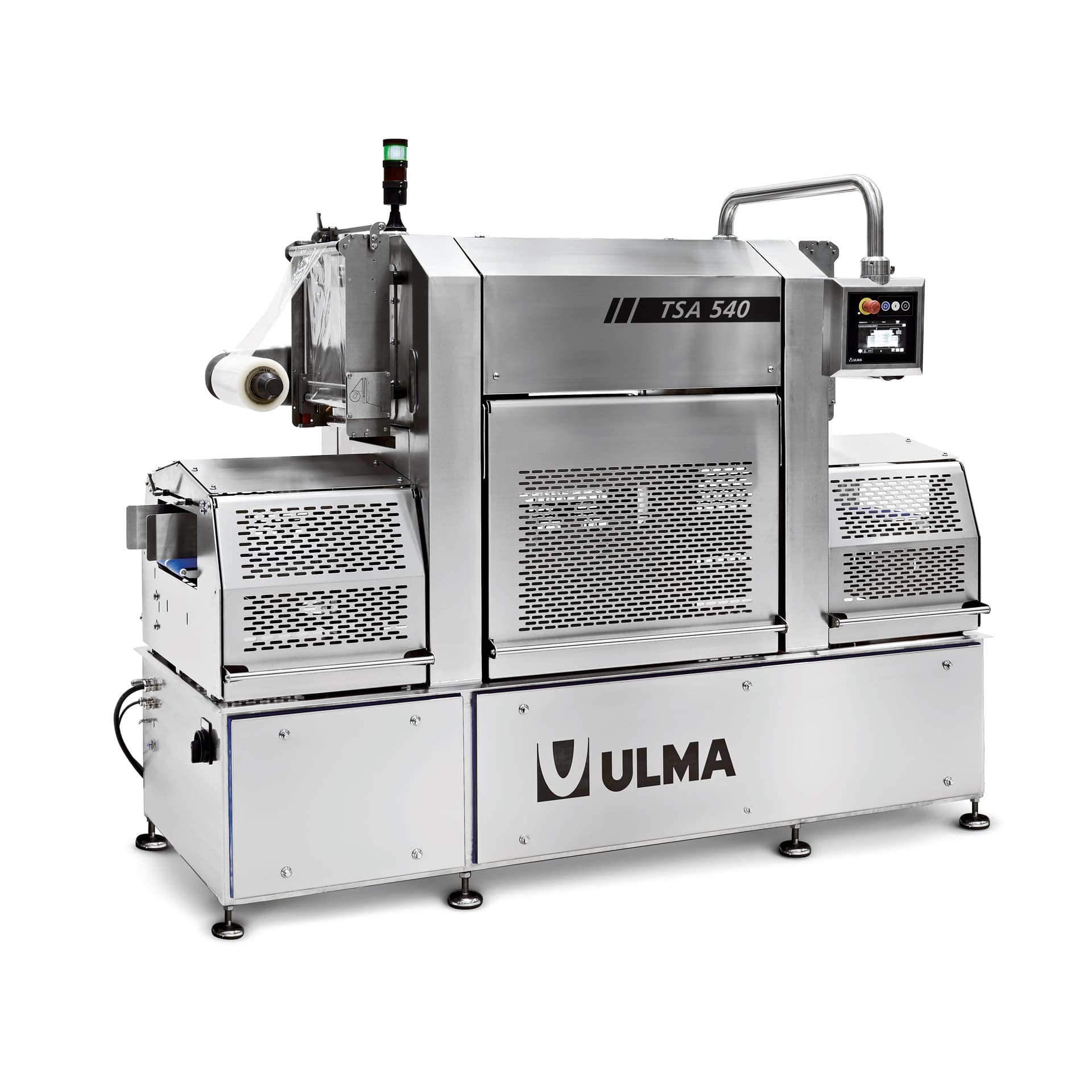

TSA 540
Processing Capacity
- Maximum 15 cycles/min (cut & seal), Maximum 12 cycles/min for MAP
Compatible Packaging
- Vacuum packaging, Modified Atmosphere Packaging (MAP)
Features
- Adopts arm-based tray transport system
- Compact design achieves space saving
- Performance suitable for integration into medium-scale production lines

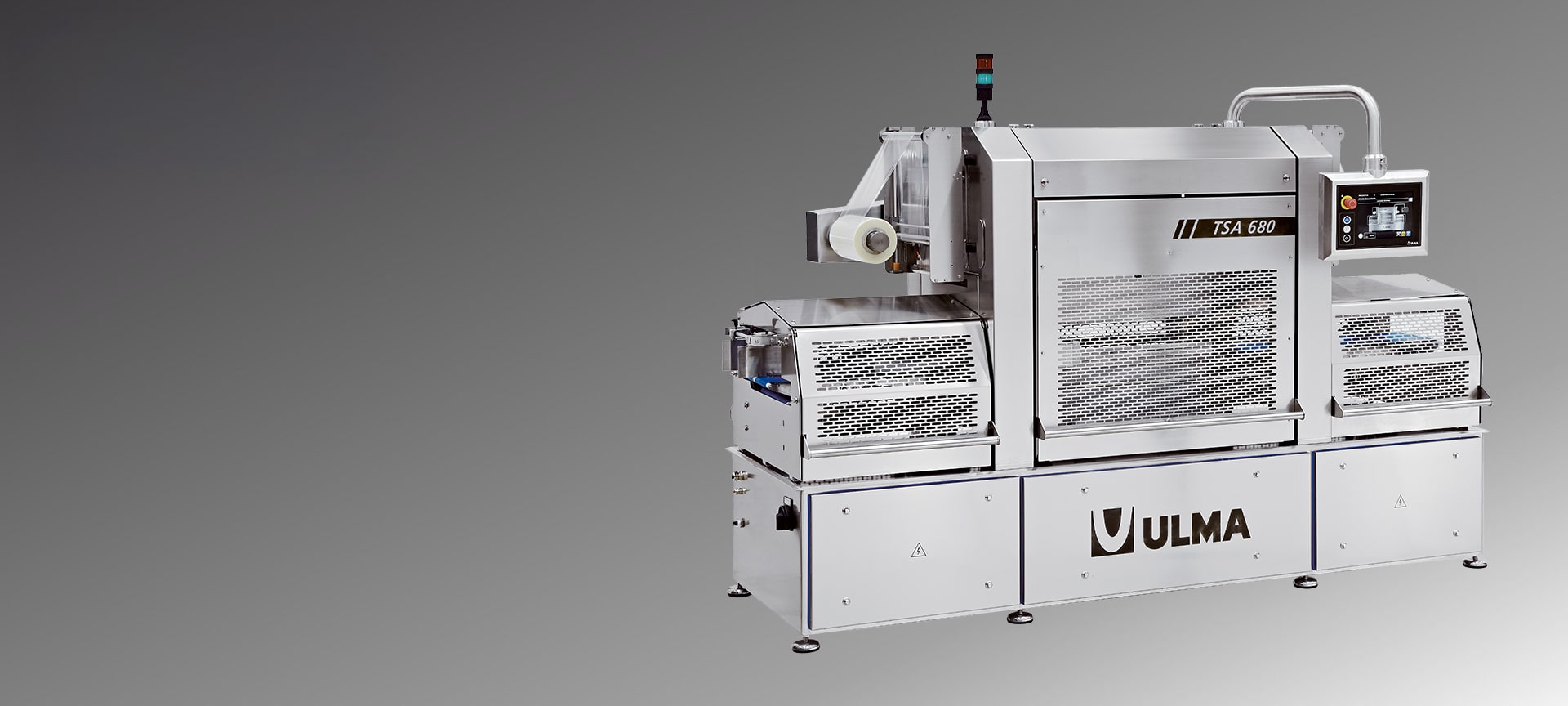

TSA 680
Processing Capacity
- Maximum 23 cycles/min (cut & seal), Maximum 20 cycles/min for MAP
Compatible Packaging
- Vacuum packaging, Modified Atmosphere Packaging (MAP), Skin packaging
Features
- Adopts arm-based tray transport system
- Hygienic and robust design
- High energy efficiency reduces maintenance costs
- Performance suitable for integration into medium to high-scale production lines

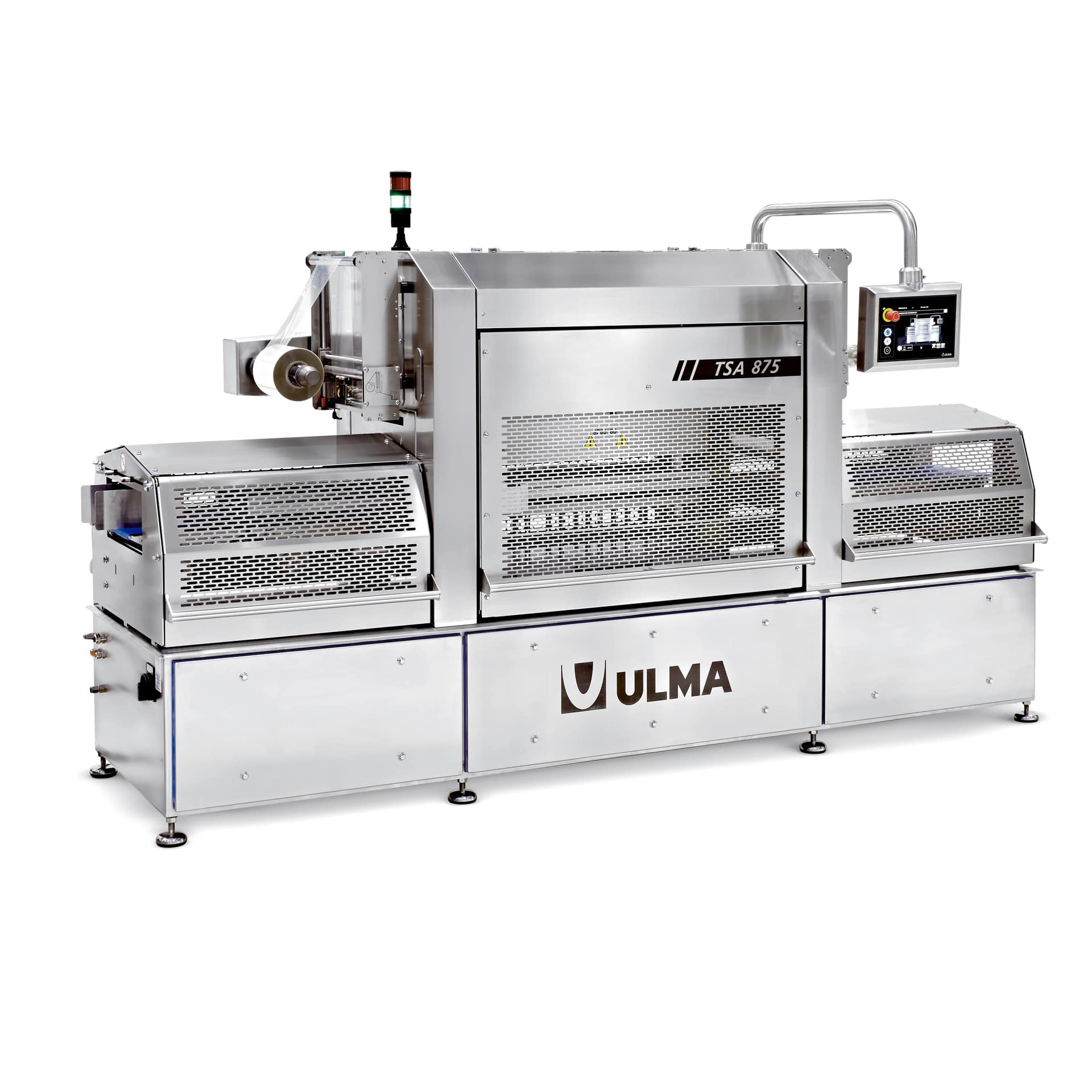

TSA 875
Processing Capacity
- Maximum 25 cycles/min (cut & seal), Maximum 22 cycles/min for MAP
Compatible Packaging
- Vacuum packaging, Modified Atmosphere Packaging (MAP), Skin packaging
Features
- Adopts arm-based tray transport system
- High production capacity, suitable for integration into large-scale production lines
- Compatible with various tray sizes and shapes
TSA 1000
Processing Capacity
- Maximum 28 cycles/min (cut & seal), Maximum 24 cycles/min for MAP
Compatible Packaging
- Vacuum packaging, Modified Atmosphere Packaging (MAP), Skin packaging
Features
- Adopts arm-based tray transport system
- Very high production capacity, optimal for integration into large-scale production lines
- Compatible with various tray sizes and shapes
TSA 1200
Processing Capacity
- Maximum 30 cycles/min (cut & seal), Maximum 26 cycles/min for MAP
Compatible Packaging
- Vacuum packaging, Modified Atmosphere Packaging (MAP), Skin packaging
Features
- Adopts arm-based tray transport system
- Highest level production capacity, optimal for integration into large-scale production lines
- Compatible with various tray sizes and shapes
TSA 1200 XL
Processing Capacity
- Maximum 30 cycles/min (cut & seal), Maximum 26 cycles/min for MAP
Compatible Packaging
- Vacuum packaging, Modified Atmosphere Packaging (MAP), Skin packaging
Features
- Adopts arm-based tray transport system
- Maintains TSA 1200 performance while supporting larger tray sizes
- Optimal for integration into large-scale production lines
Product Materials
Main Unit Specifications
| SMART 300 | SMART 500 | TSB 300 | TSA 540 | TSA 680 | TSA 875 | TSA 1000 | TSA 1200 | TSA 1200 XL | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Sealing Area | 300 × 400 mm | 380 × 510 mm | 300 × 440 mm | 330 × 540 mm | 330 × 680 mm | 330 × 875 mm | 330 × 1,030 mm | 330 × 1,200 mm | 500 × 1,250 mm | |
| Maximum Tray Depth | Maximum 120 mm | Maximum 150 mm | Maximum 120 mm | |||||||
| Maximum Film Diameter | 300 mm | |||||||||
| Film Core Diameter | 76 mm | |||||||||
| Electrical System | Voltage | 200V Three-phase 50/60 Hz | ||||||||
| Power Consumption | 13.0 kW (Built-in pump) 3.8 kW (Without pump) |
9.8 kW (Built-in pump) 3.2 kW (Without pump) |
10.1 kW (Built-in pump) 3.5 kW (Without pump) |
13.0 kW (Built-in pump) 3.8 kW (Without pump) |
13.4 kW (Built-in pump) 4.2 kW (Without pump) |
15.4 kW (Built-in pump) 6.2 kW (Without pump) |
16.4 kW (Built-in pump) 7.2 kW (Without pump) |
16.4 kW (Built-in pump) 7.2 kW (Without pump) |
||
| Air Consumption | 17L/cycle | 23L/cycle | 40L/cycle | 12L/cycle | 15L/cycle | 18L/cycle | 19L/cycle | 19L/cycle | 20L/cycle | |
| Machine Weight | 450 kg | 550 kg | 650 kg | 1,750 kg | 2,000 kg | 2,300 kg | 2,700 kg | 3,100 kg | 3,700 kg | |
| Machine Length | 1,080 mm | 1,300 mm | 2,300 mm | 2,600 mm | 3,017 mm | 3,600 mm | 4,070 mm | 4,570 mm | 4,570 mm | |
| Processing Speed (Seal only) | Maximum 8 cycles/min | Maximum 12 cycles/min | Maximum 23 cycles/min | Maximum 22 cycles/min | Maximum 21 cycles/min | Maximum 20 cycles/min | Maximum 19 cycles/min | |||
| Processing Speed (MAP packaging) | Maximum 5 cycles/min | Maximum 12 cycles/min | Maximum 21 cycles/min | Maximum 20 cycles/min | Maximum 18.5 cycles/min | Maximum 18 cycles/min | Maximum 17 cycles/min | Maximum 15 cycles/min | ||
SMART 300
| Sealing Area | 300 × 400 mm |
|---|---|
| Maximum Tray Depth | Maximum 120 mm |
| Maximum Film Diameter | 300 mm |
| Film Core Diameter | 76 mm |
| Voltage | 200V Three-phase 50/60 Hz |
| Power Consumption | 13.0 kW (Built-in pump) 3.8 kW (Without pump) |
| Air Consumption | 17L/cycle |
| Machine Weight | 450 kg |
| Machine Length | 1,080 mm |
| Processing Speed (Seal only) | Maximum 8 cycles/min |
| Processing Speed (MAP packaging) | Maximum 5 cycles/min |
SMART 500
| Sealing Area | 380 × 510 mm |
|---|---|
| Maximum Tray Depth | Maximum 120 mm |
| Maximum Film Diameter | 300 mm |
| Film Core Diameter | 76 mm |
| Voltage | 200V Three-phase 50/60 Hz |
| Power Consumption | 13.0 kW (Built-in pump) 3.8 kW (Without pump) |
| Air Consumption | 23L/cycle |
| Machine Weight | 550 kg |
| Machine Length | 1,300 mm |
| Processing Speed (Seal only) | Maximum 8 cycles/min |
| Processing Speed (MAP packaging) | Maximum 5 cycles/min |
TSB 300
| Sealing Area | 300 × 440 mm |
|---|---|
| Maximum Tray Depth | Maximum 150 mm |
| Maximum Film Diameter | 300 mm |
| Film Core Diameter | 76 mm |
| Voltage | 200V Three-phase 50/60 Hz |
| Power Consumption | 9.8 kW (Built-in pump) 3.2 kW (Without pump) |
| Air Consumption | 40L/cycle |
| Machine Weight | 650 kg |
| Machine Length | 2,300 mm |
| Processing Speed (Seal only) | Maximum 12 cycles/min |
| Processing Speed (MAP packaging) | Maximum 12 cycles/min |
TSA 540
| Sealing Area | 330 × 540 mm |
|---|---|
| Maximum Tray Depth | Maximum 120 mm |
| Maximum Film Diameter | 300 mm |
| Film Core Diameter | 76 mm |
| Voltage | 200V Three-phase 50/60 Hz |
| Power Consumption | 10.1 kW (Built-in pump) 3.5 kW (Without pump) |
| Air Consumption | 12L/cycle |
| Machine Weight | 1,750 kg |
| Machine Length | 2,600 mm |
| Processing Speed (Seal only) | Maximum 23 cycles/min |
| Processing Speed (MAP packaging) | Maximum 21 cycles/min |
TSA 680
| Sealing Area | 330 × 680 mm |
|---|---|
| Maximum Tray Depth | Maximum 120 mm |
| Maximum Film Diameter | 300 mm |
| Film Core Diameter | 76 mm |
| Voltage | 200V Three-phase 50/60 Hz |
| Power Consumption | 13.0 kW (Built-in pump) 3.8 kW (Without pump) |
| Air Consumption | 15L/cycle |
| Machine Weight | 2,000 kg |
| Machine Length | 3,017 mm |
| Processing Speed (Seal only) | Maximum 23 cycles/min |
| Processing Speed (MAP packaging) | Maximum 20 cycles/min |
TSA 875
| Sealing Area | 330 × 875 mm |
|---|---|
| Maximum Tray Depth | Maximum 120 mm |
| Maximum Film Diameter | 300 mm |
| Film Core Diameter | 76 mm |
| Voltage | 200V Three-phase 50/60 Hz |
| Power Consumption | 13.4 kW (Built-in pump) 4.2 kW (Without pump) |
| Air Consumption | 18L/cycle |
| Machine Weight | 2,300 kg |
| Machine Length | 3,600 mm |
| Processing Speed (Seal only) | Maximum 22 cycles/min |
| Processing Speed (MAP packaging) | Maximum 18.5 cycles/min |
TSA 1000
| Sealing Area | 330 × 1,030 mm |
|---|---|
| Maximum Tray Depth | Maximum 120 mm |
| Maximum Film Diameter | 300 mm |
| Film Core Diameter | 76 mm |
| Voltage | 200V Three-phase 50/60 Hz |
| Power Consumption | 15.4 kW (Built-in pump) 6.2 kW (Without pump) |
| Air Consumption | 19L/cycle |
| Machine Weight | 2,700 kg |
| Machine Length | 4,070 mm |
| Processing Speed (Seal only) | Maximum 21 cycles/min |
| Processing Speed (MAP packaging) | Maximum 18 cycles/min |
TSA 1200
| Sealing Area | 330 × 1,200 mm |
|---|---|
| Maximum Tray Depth | Maximum 120 mm |
| Maximum Film Diameter | 300 mm |
| Film Core Diameter | 76 mm |
| Voltage | 200V Three-phase 50/60 Hz |
| Power Consumption | 16.4 kW (Built-in pump) 7.2 kW (Without pump) |
| Air Consumption | 19L/cycle |
| Machine Weight | 3,100 kg |
| Machine Length | 4,570 mm |
| Processing Speed (Seal only) | Maximum 20 cycles/min |
| Processing Speed (MAP packaging) | Maximum 17 cycles/min |
TSA 1200 XL
| Sealing Area | 500 × 1,250 mm |
|---|---|
| Maximum Tray Depth | Maximum 120 mm |
| Maximum Film Diameter | 300 mm |
| Film Core Diameter | 76 mm |
| Voltage | 200V Three-phase 50/60 Hz |
| Power Consumption | 16.4 kW (Built-in pump) 7.2 kW (Without pump) |
| Air Consumption | 20L/cycle |
| Machine Weight | 3,700 kg |
| Machine Length | 4,570 mm |
| Processing Speed (Seal only) | Maximum 19 cycles/min |
| Processing Speed (MAP packaging) | Maximum 15 cycles/min |
