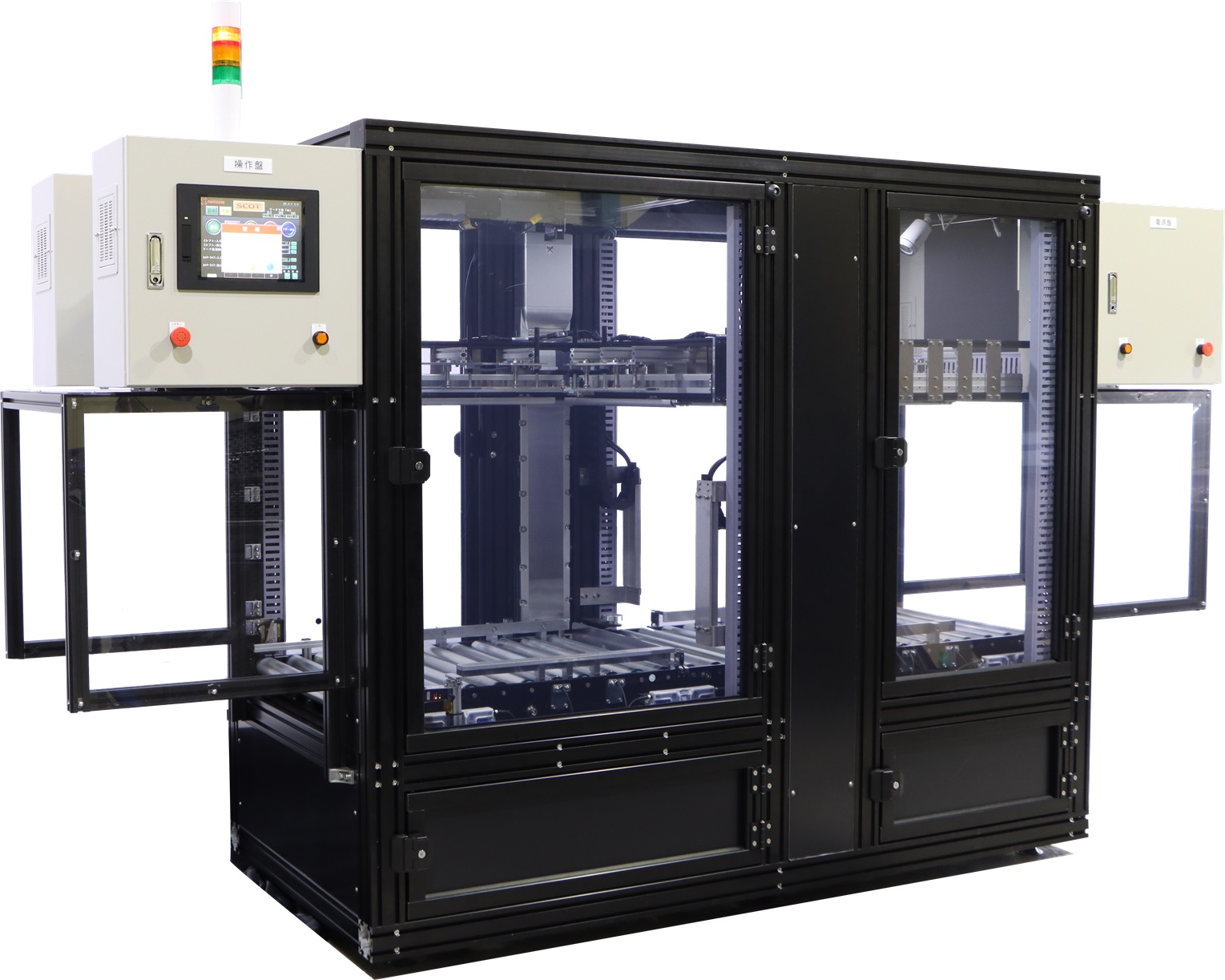

Automated Box Opening Machine
Automated Box Opening Machine
製品説明
SCOT
Domestic Manufacturing
Simple Design
Easy Implementation
New Automated Box Opening Machine!
Product Features

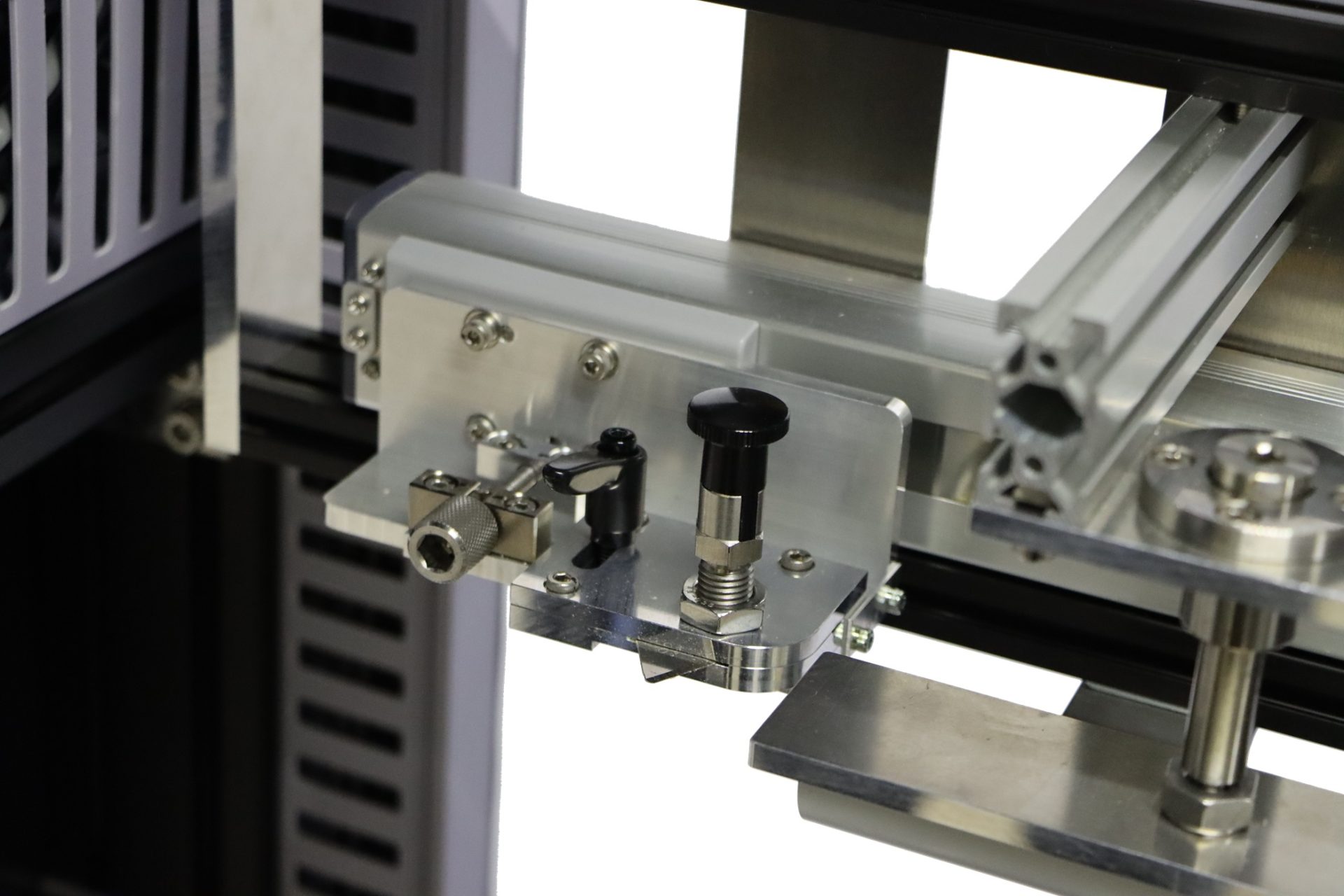

Simple Mechanism Without Robot Hands
- Opens cardboard boxes by cutting 2 sides of the top surface × 2 times.
- Simple design without robot hands.
- Cost reduction achieved through domestic manufacturing!
Automatic Workpiece Size Detection, Random Input Possible
- Automatically determines the size of input workpieces each time.
- Like ABOT, random sizes can be input.
Maximum Processing Capacity of 480 Boxes
- Maximum processing capacity is 480 boxes per hour.
- This also boasts processing capacity equivalent to ABOT.
- ※Varies according to size and weight
Easy Implementation: Just Install > Power On > Start and Ready to Use
- Main unit weight 800kg, movable with casters.
- Only required utility is 3-phase 200V (20A).
- Ready to use immediately after startup for easy implementation!
Remote Maintenance Support
- In case of trouble, remote error log retrieval and program replacement are possible.
- Furthermore, we can confirm operating status with cameras installed inside the product and provide accurate support.
Various Safety Designs Including Interlocks and Emergency Stops
- Safe design that does not operate when maintenance doors are open and cannot be opened during operation.
- Emergency stop buttons are placed at entry/exit points.
- Design prevents hands from reaching cutter section.
Product Documentation
Main Unit Specifications (Including Standard Optional Conveyor)
| Machine Dimensions | Main unit only: Length 3,220 x Width 1,020 x Height 1,850mm ※Including standard conveyor: Length 5,100mm Conveyor surface height: 600-640mm |
|---|---|
| Machine Weight | Main unit only: 800kg |
| Power Supply | 3-phase 200V 50/60Hz 2.5kW 20A |
| Unpackable Dimensions | Length: 225-600mm Width: 150-500mm Height: 100-600mm ※Custom solutions available for dimensions exceeding the above |
| Transportable Weight | 25kg ※Custom solutions available for weights exceeding the above |
| Processing Capacity | Unpacking capacity: Maximum 480 boxes/hour Conveyor speed: 30m/min (under 15kg) 24m/min (15kg-25kg) ※Varies according to height, length, and weight |
| Communication Environment | Wired LAN connection (2LTE or VPN connection recommended) ※Required to provide remote maintenance functionality |
