NTD-165
Libra 165C

商品カテゴリー

関連タグ

製品説明

3D Fixed-Weight Slicer NTD-165 Libra 165C

Enter the new era of fixed-weight slicers! High-speed fixed-weight system that enables high-volume processing with minimal staff!

Features of Libra 165C (NTD-165)

High-Speed Fixed-Weight Slicing

NTD-165 Libra 165C
  • 3D measuring device reads the shape of raw material before slicing.
  • No need for weight feedback, enabling high-speed fixed-weight processing.
  • Freely arranges fixed-weight items on conveyor with customizable slice count and intervals.

Non-Contact Measurement Improves Product Value

NTD-165 Libra 165C
  • Shape reading performed non-contact using displacement sensors for hygiene.
  • Does not deform products during measurement.
  • No stress on products, preserving product value.

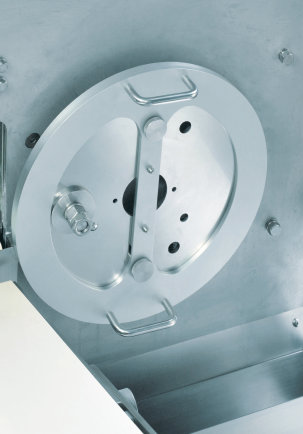

Circular Blade with Stable Cutting Performance

NTD-165 Libra 165C
  • Our proprietary circular blade eccentric technology achieves exceptional cutting performance.

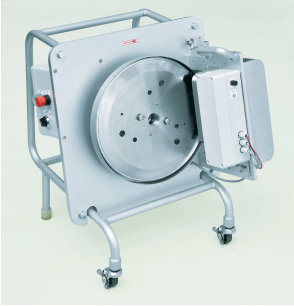

  • Semi-automatic sharpening with dedicated grinding device maintains stable cutting performance.
  • Changeable blade position allows 3 times longer use compared to standard circular blades.

Easy-to-Use LCD Touch Panel

NTD-165 Libra 165C
  • Features easy-to-see and easy-to-operate color touch panel.
  • No complicated settings required.
  • Anyone can easily perform fixed-weight slicing.

Maximum 250 Slices/Min for Regular Slicing

NTD-165 Libra 165C
  • Also capable of fixed-thickness cutting.
  • Can slice wide range of ingredients from pork loin ginger stir-fry to yakiniku materials.

Product Documentation

E-Catalog

Approval Drawing

Main Unit Specifications

Machine Dimensions Width 903 × Depth 948 × Height 1,730mm
Machine Weight 310kg
Power Supply 3-phase 200V 50/60Hz 20A
Motor Capacity For circular blade: 0.4kW × 1 unit
For feeding: 0.4kW × 1 unit
Slicing Capacity Fixed-weight slicing: MAX 6,000 slices/hour
※Based on raw material length 500mm, thickness approx. 15mm.
Regular slicing: MAX 250 slices/min
Slice Thickness (0)-50mm
Sliceable Dimensions Width 165 × Height 100 × Length 600mm
Suitable Slicing Temperature -2℃ to +3℃ ※Varies slightly depending on meat thickness, quality, and shape.
※Tempering required for thin slicing.

3D Measuring Device Specifications

3D Measuring Device Dimensions Width 770 (Belt width 390) × Depth 1,677 × Height 1,557mm
3D Measuring Device Weight 210kg
3D Measuring Device Motor Capacity For sensor linear motion: 0.3kW × 2 units
For 3D measuring device conveyor: 0.9kW × 2 units
3D Measuring Device Conveyor Speed 0-13m/min

Conveyor Specifications

Conveyor Dimensions Width 373 (Belt width 220) × Depth 1,209 × Height 946mm
Conveyor Weight Approx. 45kg
Conveyor Motor Capacity For conveyor: 0.9kW × 1 unit
Conveyor Speed 0-22m/min

*Specifications may be changed without notice for product improvement.
