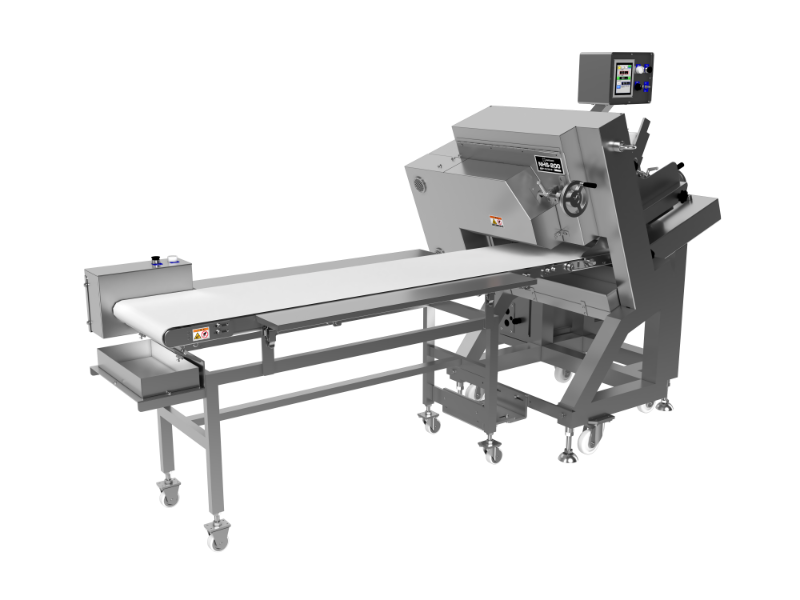

High-Speed Salmon Slicer NHS-200
Features of NHS-200
Continuous Feeding Possible, Free Arrangement, Intermittent Feeding with Slice Count Settings as Desired!
Microcomputer control automatically controls slice speed, slice thickness, slice count settings, interval settings, and arrangement patterns. Continuous slicing, intermittent slicing, and scale arrangement are freely configurable. Slice speed can be controlled with stepless speed adjustment.
Arbitrary Diagonal Cutting Possible in 45° to 55° Range
Supports thin and thick slicing of salmon, yakiniku materials, and other food ingredients.
Other Features
- Maximum speed 200 slices/min
- Clear operation with color touch panel display
- Uses stainless special blade steel
- Safe with interlock mechanism
- Compact design that doesn’t take up much space
Product Documentation
Main Unit Specifications
| Machine Dimensions | Width 1,123 × Depth 1,380 × Height 1,571mm |
|---|---|
| Machine Weight | 380kg |
| Power Supply | 3-phase 200V 50/60Hz 20A or more |
| Motor Capacity | For blade: 0.4kW × 1 unit For face plate: 0.4kW × 1 unit For feeding: 0.4kW × 1 unit |
| Diagonal Cutting Angle | 45° to 55° |
| Slicing Capacity | Maximum 200 slices/min (stepless speed control) |
| Slice Thickness | (0)-8mm |
| Sliceable Dimensions | Width 200 × Height 45mm |
| Suitable Slicing Temperature | -8℃ to -5℃ ※For salmon |
Conveyor Specifications
| Conveyor Dimensions | Width 706 (Belt width 400) × Depth 2,060 × Height 890mm |
|---|---|
| Machine Weight | 85kg |
| Motor Capacity | For conveyor: 90W × 1 unit |
| Conveyor Speed | 0-25m/min (stepless speed control) |
※Specifications may be changed without notice for product improvement.
