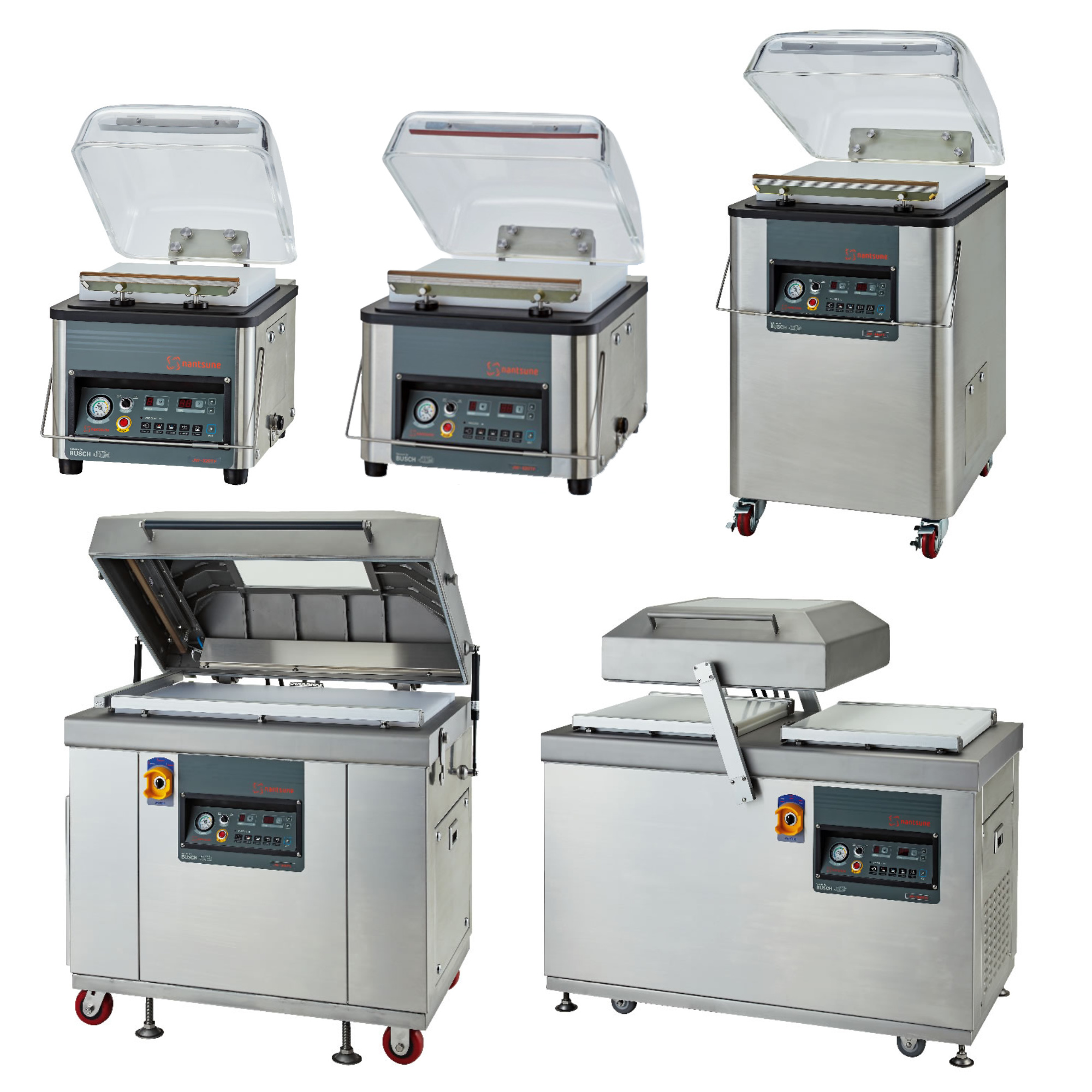

JW Vacuum Packaging Machine Series JW-320TF / JW-420TF / JW-480FF / JW-600TD / JW-900FL / JW-900FW
Standard model achieving reliable basic performance and economy Flat chamber for easy cleaning and hygiene! Simple operation that anyone can handle easily
Features of JW-320TF / JW-420TF / JW-480FF / JW-600TD / JW-900FL / JW-900FW
Main Features
- Flat chamber makes cleaning easy!
- Simple operation panel!
- Reasonable price!

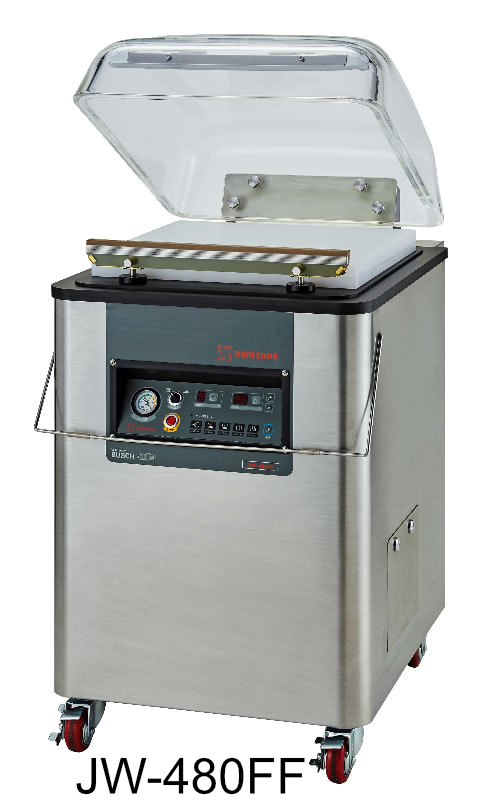

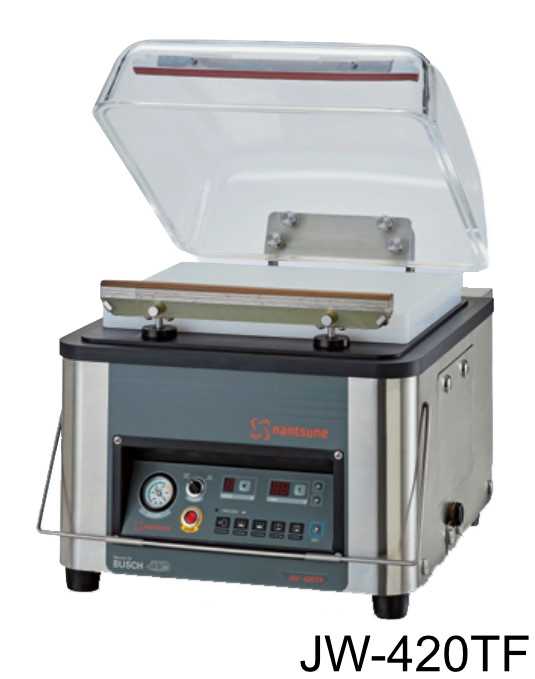

JW-320TF / JW-420TF / JW-480FF Specifications
| Machine Dimensions | JW-320TF: Width 420 × Depth 616 × Height 523-720mm JW-420TF: Width 520 × Depth 670 × Height 553-747mm JW-480FF: Width 590 × Depth 785 × Height 1055-1295mm |
|---|---|
| Machine Weight | JW-320TF: 60kg JW-420TF: 80kg JW-480FF: 140kg |
| Power Supply | JW-320TF: Single-phase 100V 50/60Hz 20A JW-420TF: Single-phase 100V 50/60Hz 20A JW-480FF: 3-phase 200V 50/60Hz 20A |
| Chamber Internal Dimensions | JW-320TF: Width 360 × Depth 450 × Height 160mm JW-420TF: Width 460 × Depth 500 × Height 190mm JW-480FF: Width 520 × Depth 610 × Height 200mm |
| Chamber Effective Dimensions | JW-320TF: Width 320 × Depth 350mm JW-420TF: Width 420 × Depth 390mm JW-480FF: Width 480 × Depth 510mm |
| Maximum Seal Width | JW-320TF: 320mm × 1 JW-420TF: 420mm × 1 JW-480FF: 480mm × 1 |
| Vacuum Pump Capacity | JW-320TF: 21m³/h 50Hz / 25m³/h 60Hz JW-420TF: 21m³/h 50Hz / 25m³/h 60Hz JW-480FF: 25m³/h 50Hz / 30m³/h 60Hz |
| Oil Capacity | JW-320TF: #32 0.45L JW-420TF: #32 0.45L JW-480FF: #100 1.0L |

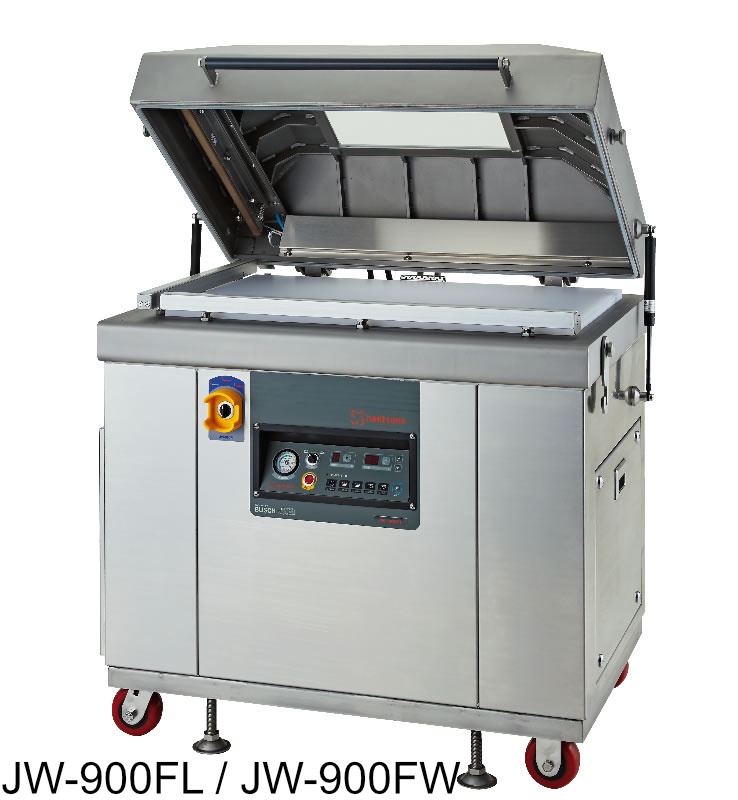

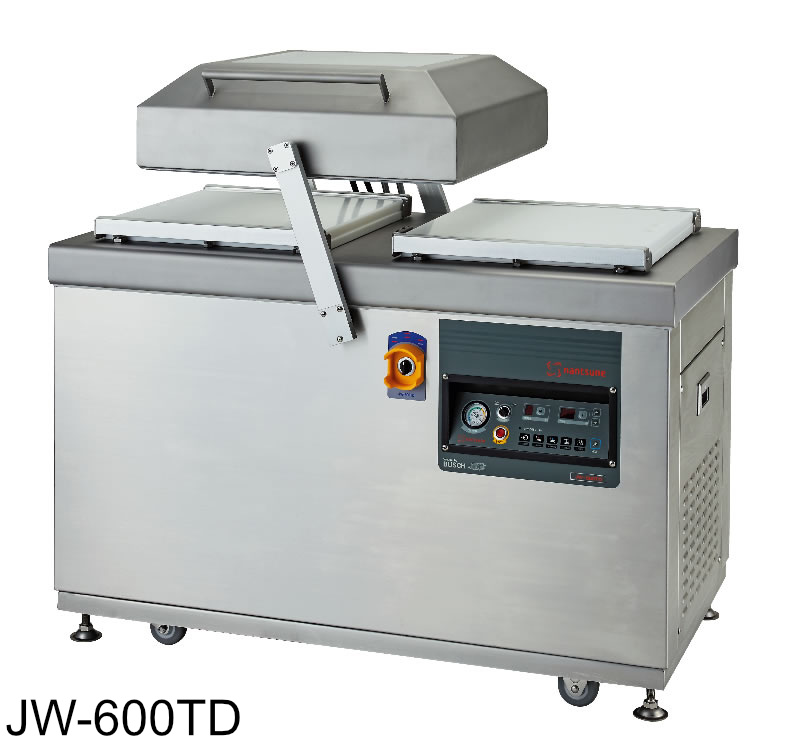

JW-600TD / JW-900FL / JW-900FW Specifications
| Machine Dimensions | JW-600TD: Width 1240 × Depth 746 × Height 987-1161mm JW-900FL: Width 1044 × Depth 777 × Height 1070-1400mm JW-900FW: Width 1044 × Depth 755 × Height 1070-1390mm |
|---|---|
| Machine Weight | JW-600TD: 330kg JW-900FL: 350kg JW-900FW: 350kg |
| Power Supply | JW-600TD: 3-phase 200V 50/60Hz 20A (Recommended facility 30A) JW-900FL: 3-phase 200V 50/60Hz 20A (Recommended facility 30A) JW-900FW: 3-phase 200V 50/60Hz 20A (Recommended facility 30A) |
| Chamber Internal Dimensions | JW-600TD: Width 610 × Depth 610 × Height 175mm JW-900FL: Width 920 × Depth 620 × Height 206mm JW-900FW: Width 920 × Depth 620 × Height 206mm |
| Chamber Effective Dimensions | JW-600TD: Width 470 × Depth 480mm JW-900FL: Width 840 × Depth 510mm JW-900FW: Width 780 × Depth 560mm |
| Maximum Seal Width | JW-600TD: 475mm × 4 JW-900FL: Front 800mm × 1 / Left side 560mm × 1 JW-900FW: Left side 560mm × 1 / Right side 560mm × 1 |
| Vacuum Pump Capacity | JW-600TD: 63m³/h 50Hz / 76m³/h 60Hz JW-900FL: 100m³/h 50Hz / 120m³/h 60Hz JW-900FW: 100m³/h 50Hz / 120m³/h 60Hz |
| Oil Capacity | JW-600TD: #100 2.0L JW-900FL: #100 2.0L JW-900FW: #100 2.0L |
※Specifications may be changed without notice for product improvement.
