IKSC-300
製品説明

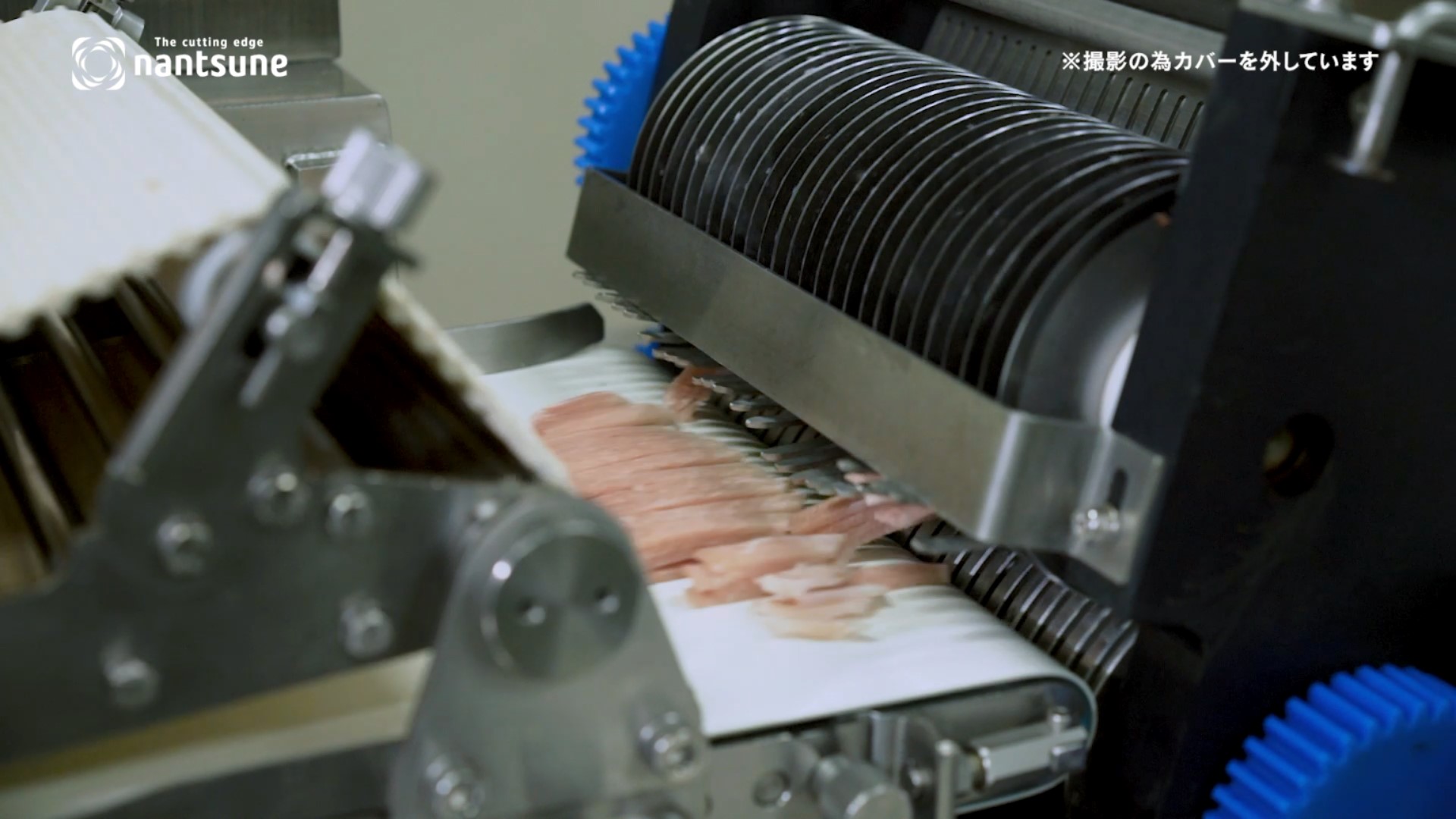

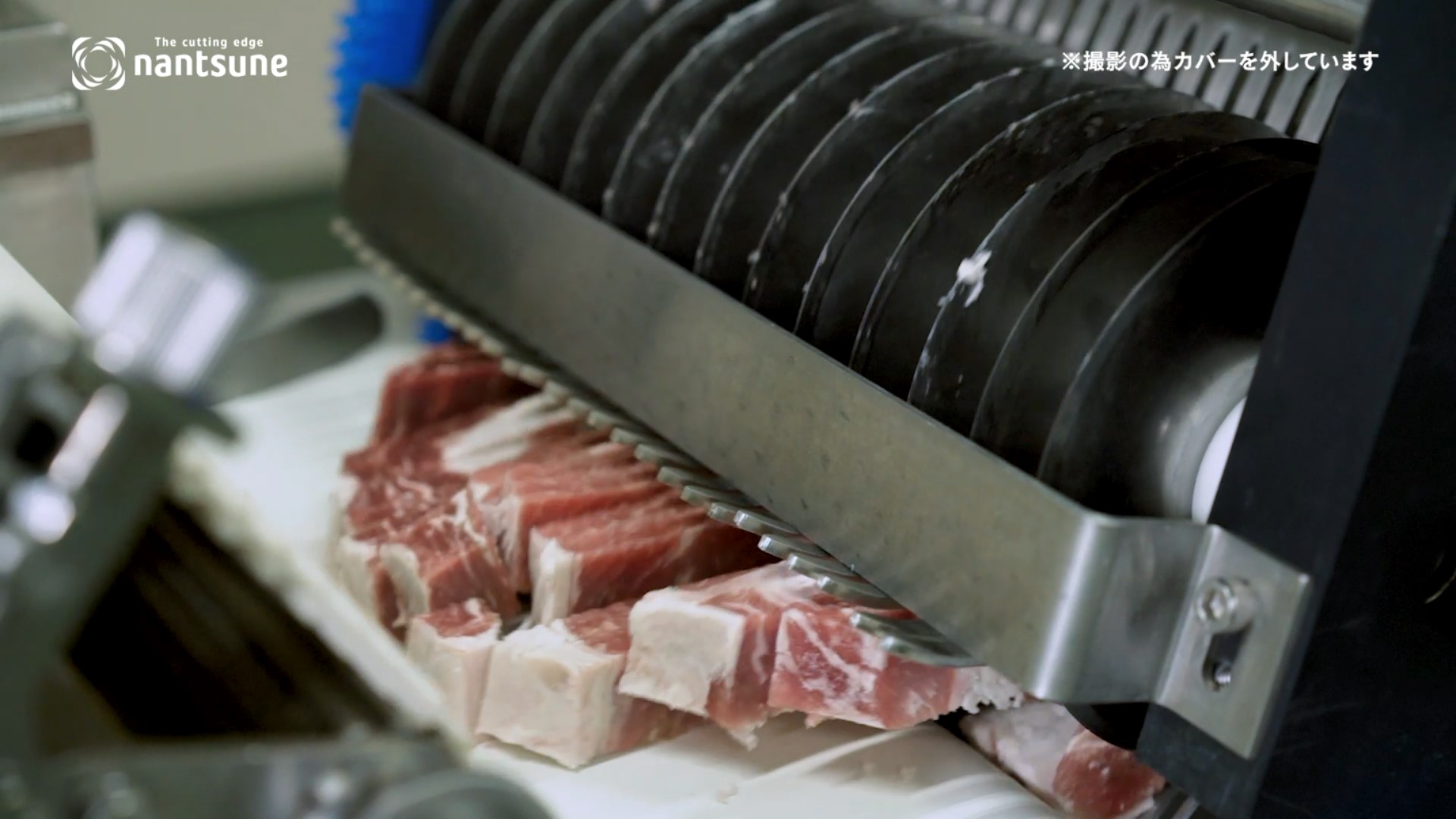

High-Speed Dicing Machine IKSC-300
Freely cuts by width and length
Features of IKSC-300
Freely Cut Meat Size and Length
Easy Disassembly and Cleaning

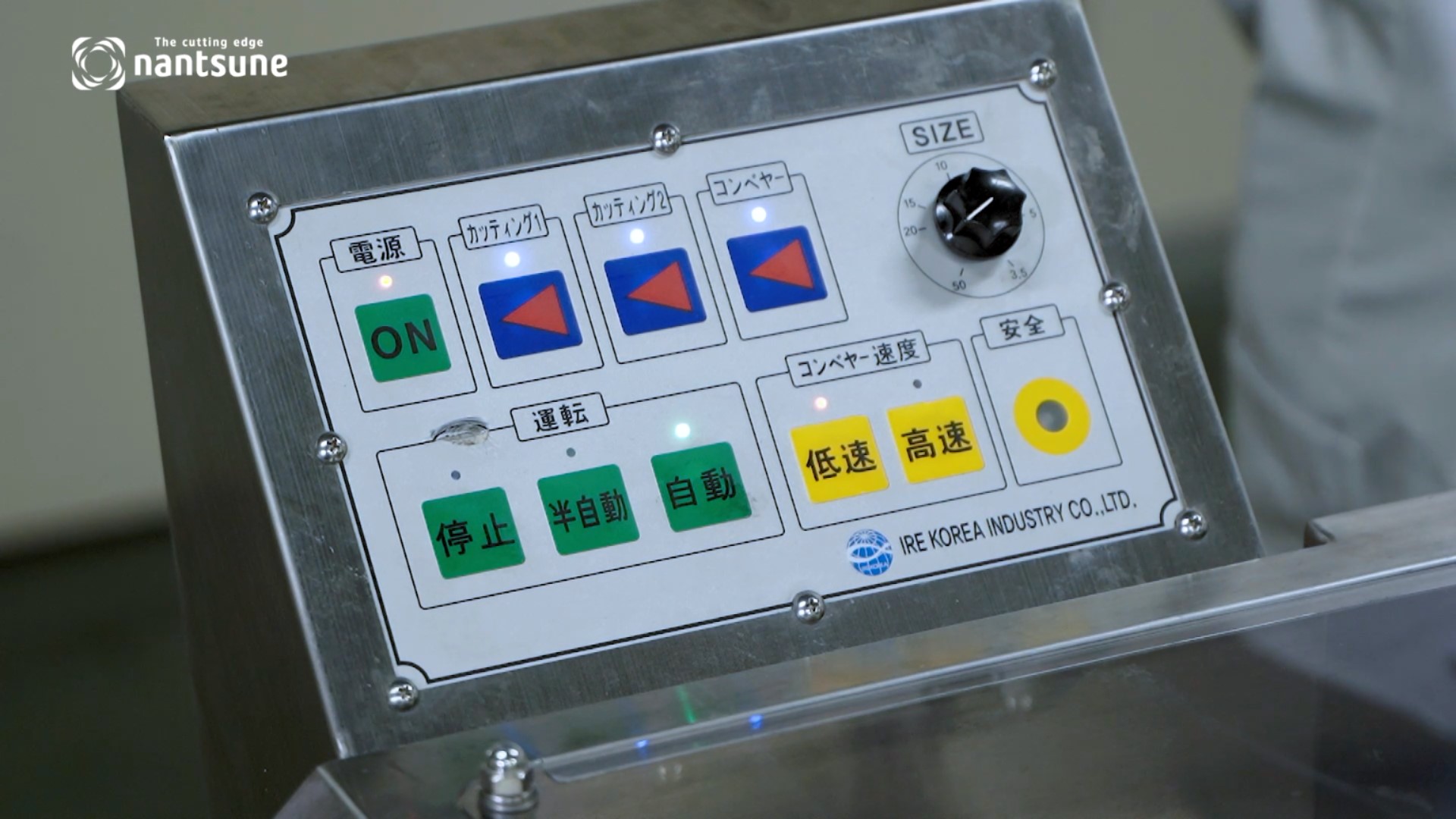

Easy-to-See and Easy-to-Work Operation Panel

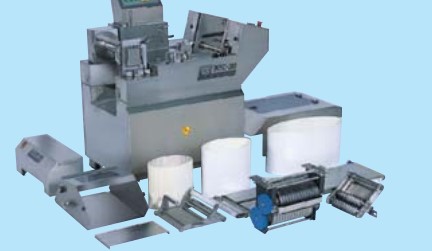

Various Processing Dimensions by Changing Replacement Frames (Replacement Frames Sold Separately)
Other Features
- Slicing possible from -6℃ to -2℃
- High work capacity with high-speed processing
- Complete sensor interlock mechanism for safe and secure work
Product Documentation
Main Unit Specifications
| Machine Dimensions | Width 1,601 × Depth 741 × Height 1,232mm |
|---|---|
| Machine Weight | 310kg |
| Power Supply | 3-phase 200V 50/60Hz |
| Motor Capacity | Primary cut: 0.4kW × 1 unit Secondary cut: 0.75kW × 1 unit Center conveyor: 0.2kW × 1 unit |
| Slicing Capacity | 30 rpm to 1,100 rpm |
| Slice Thickness | Primary cut: 6-30mm Secondary cut: 5-70mm |
| Sliceable Dimensions | Width 260 × Height: Primary cut pitch or less |
| Suitable Slicing Temperature | -6℃ to -2℃ ※Varies slightly depending on meat thickness, quality, and shape |
| Processing Capacity | 450kg/h (for 10×10mm application) |
※Specifications may be changed without notice for product improvement.
