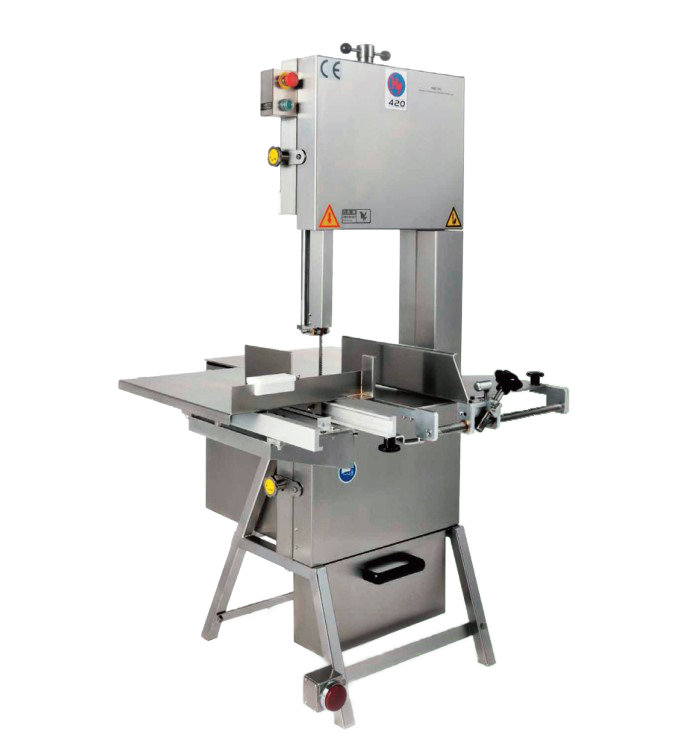

HY-350L / HY-420L
製品説明
High-Speed Band Saw HY-350L / HY-420L
Reduce cutting loss with high-speed cutting
Features of HY-350L / HY-420L
Main Features
- Clean cut surface with zero cutting debris adhesion
- Safety circuit mechanism equipped as standard
- Fine-adjustable thickness gauge
Main Unit Specifications
| Machine Dimensions | HY-350L: Width 803 × Depth 1,040 × Height 1,665mm HY-420L: Width 943 × Depth 1,073 × Height 1,842mm |
|---|---|
| Machine Weight | HY-350L: 140kg HY-420L: 250kg |
| Power Supply | HY-350L: 3-phase 200V 60Hz 1.5kW HY-420L: 3-phase 200V 60Hz 3.0kW |
| Rotation Speed | HY-350L: 32m/min (60Hz) HY-420L: 37m/min (60Hz) |
| Blade | HY-350L: Total length 2,578 × Width 13 × Thickness 0.56mm HY-420L: Total length 3,150 × Width 16 × Thickness 0.51mm |
| Material Dimensions | HY-350L: Width 329mm × Height 320mm HY-420L: Width 406mm × Height 425mm |
| Material Temperature | -20℃ |
※Specifications may be changed without notice for product improvement.
